Lumen 640×480mm HD Front Service indoor LED display
640x480mm indoor LED display screen, and its main outstanding features are summarized as follows:
.Efficient Front maintenance design
.Cinematic HD display
.Delicate structural design
.Suitable For 320x160mm Size Modules
.4:3 Ratio Cabinet Design
.160°Wide Viewing Angle

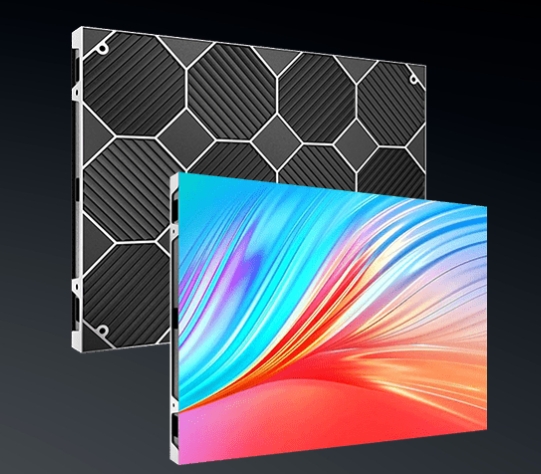

640×480 indoor LED display Screen

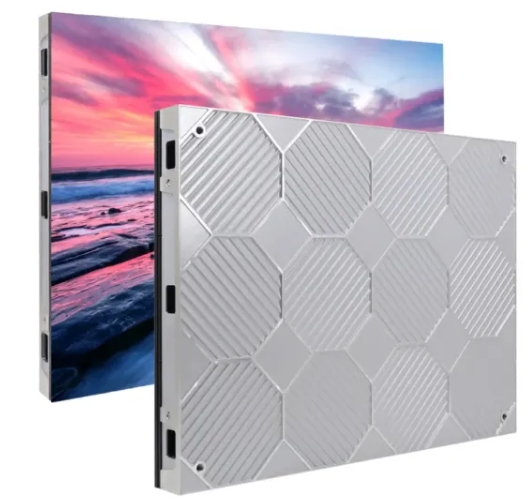

LED Screen adopts a sturdy and durable die cast aluminum cabinet, which is easy to maintain. The compact design makes the entire chassis light and thin, and easy to install and remove. In addition, it also has ultra-high resolution and high brightness, which can bring users a cinematic viewing experience.

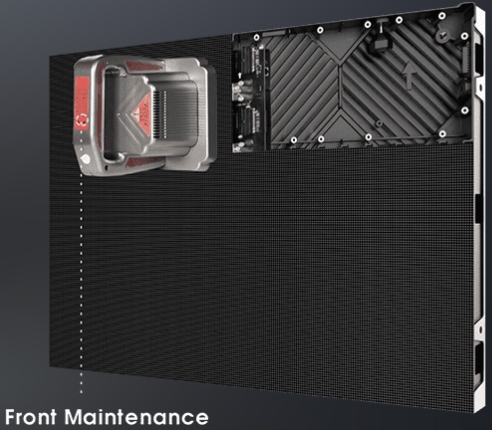

Efficient Front maintenance design
Indoor LED display screen adopts a front maintenance design, allowing users to quickly repair or replace by simply disassembling the part in front of the display screen. And this design does not require maintenance space to be left behind, improving the utilization of space.
Vacuum suction cups

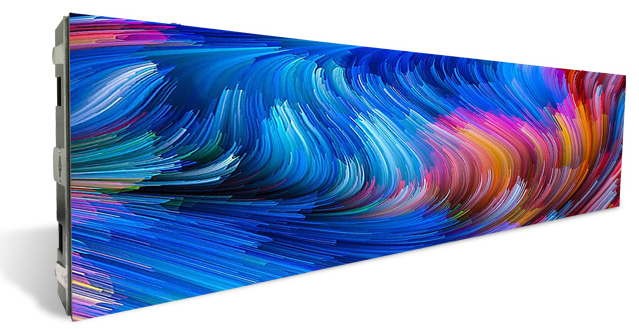

Cinematic HD display
Has ultra-high definition resolution and high brightness, making it perfect for use as a movie screen. With it, you don't have to spend money to go to the cinema.

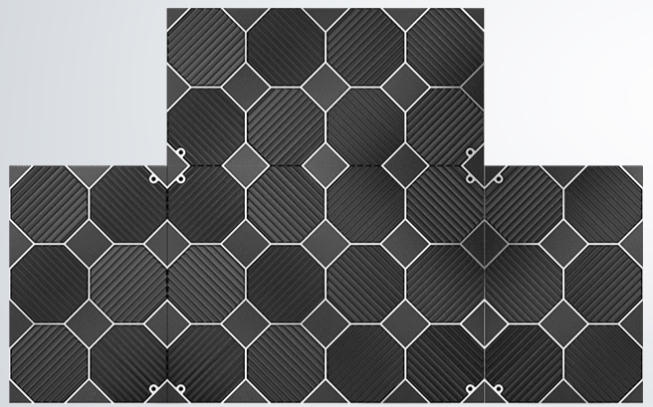

Delicate structural design
LED display has been upgraded with a more efficient adapter board design, which not only simplifies the connection interface, but also makes the internal power and data cables more neat and orderly. The overall structure is more compact, which improves the appearance and user experience of the display.
Suitable For 320x160mm Size Modules
This LED wall uses the most popular 320x160mm Size Module on the market, which is very common and easy to install and maintain, making it very beginner friendly.

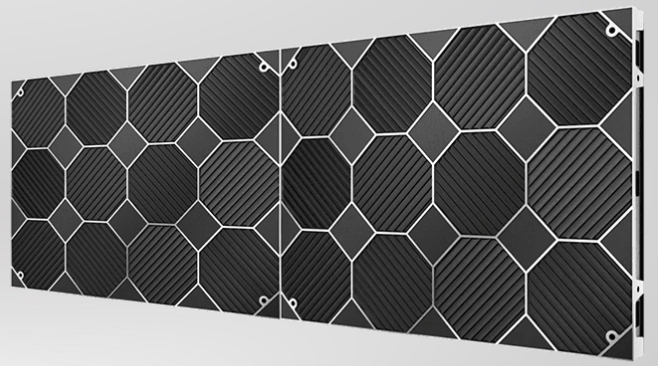

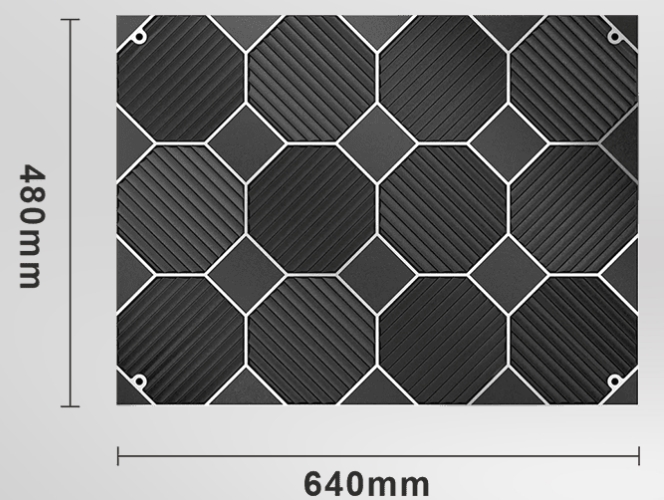

4:3 Ratio Cabinet Design
The commonly used ratios for high-definition video production are 16:9 and 4:3. LED displays with a 4:3 ratio have strong compatibility and can seamlessly play many high-definition videos.

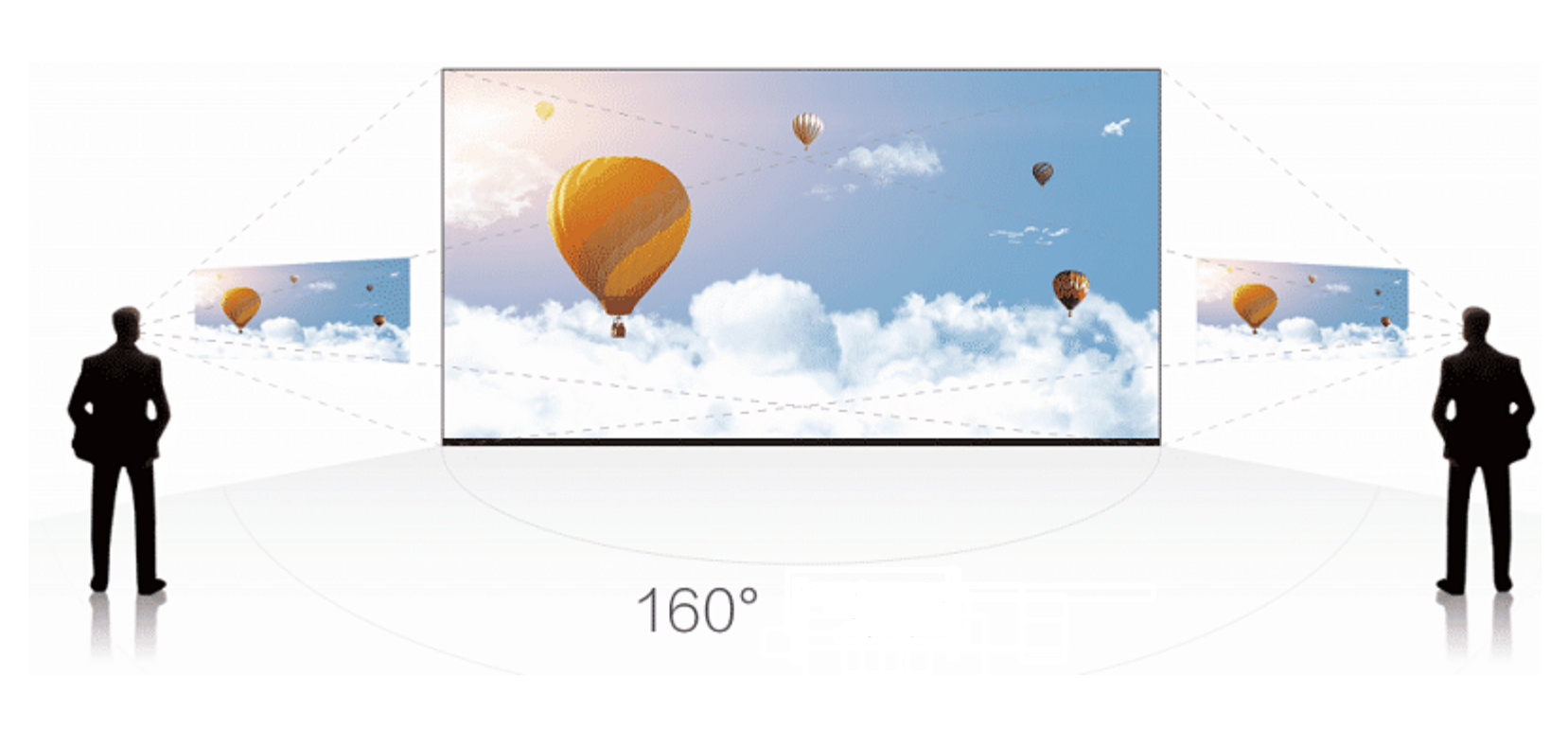

160°Wide Viewing Angle
This LED wall has a viewing angle of 160 °, which means that more viewers can clearly see the images or information on the screen from different positions.

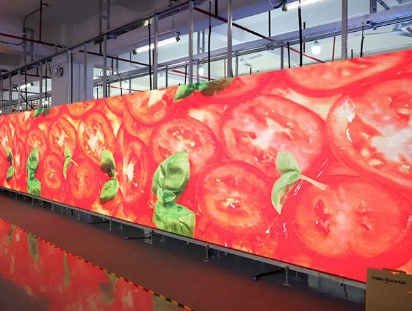

LED display aging test
Indoor 640×480mm HD Front Service LED display Series Parameter |
Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3.076 | P4 |
Model | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3.076 | P4 |
Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 | 105,688 | 62,500 |
Module Resolution (Pixel) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 |
Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
Driving Mode (Duty) | 1/32 | 1/26 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
Cabinet Size (mm) | 640x480 | 640x480 | 640x480 | 640x480 | 640x480 | 640x480 | 640x480 |
Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 | 800 | 700 |
Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 | 413 | 351 |
Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 | 138 | 117 |
Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
MTBF(hours) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
(COB) Indoor 640×480mm HD Front Service LED display Series Parameter |
Model | P1.53-COB | P1.86-COB |
Pixel Configuration | Flip chip COB | Flip chip COB |
Density (Pixels/㎡) | 422,500 | 288,906 |
Module Resolution (Pixel) | 208x104 | 172x86 |
Module Size (mm) | 320x160 | 320x160 |
Driving Mode (Duty) | 1/52 | 1/43 |
Cabinet Size (mm) | 640x480 | 640x480 |
Cabinet Weight (KG) | 7.5 | 7.5 |
Brightness (CD/㎡) | 600 | 600 |
Viewing Angle (°) | 140 | 140 |
Gray Grade (Bits) | 14 | 14 |
Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
Max. Power Consumption (W/㎡) | 580 | 580 |
Avg. Power Consumption (W/㎡) | 195 | 195 |
Frame Frequency (Hz) | ≥60 | ≥60 |
Refresh Frequency (Hz) | ≥3,840 | ≥3,840 |
Working Temperature (ºC) | -20～+60 | -20～+60 |
Protection Grade | IP31 | IP31 |
